Visualizations

2D

Schnitte

Our documentation comprises three videos (in the common MP4 format) with animated sequences of those images in each of the three sectional planes. The videos can be interrupted at any time to examine more closely any areas of particular interest. Demo videos which show an unattributed instrument which not only suffered severe damage but also underwent a very poor restoration are available in the download section.




3D

04_02_01

In addition to the sequence of 2D cuts, our documentation comprises 3D renderings of selected parts of the body.

For instance, a view of the top from the inside in 3D. Several cleats, partial doubling of the edges, a huge soundpost patch and additional repair work in the soundpost area are clearly visible and can be located with precision.




Measuring

Schnitte

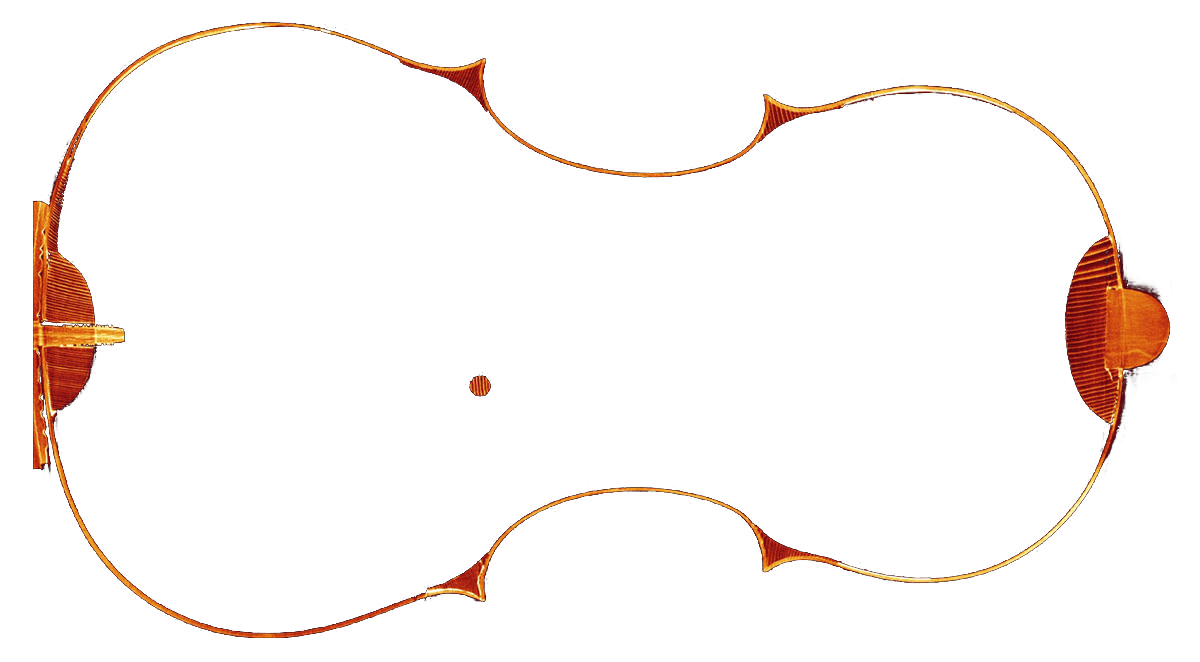

The images from the µCT scans are true to size. Life-size prints can be used to reconstruct the rib outline or arching templates.
